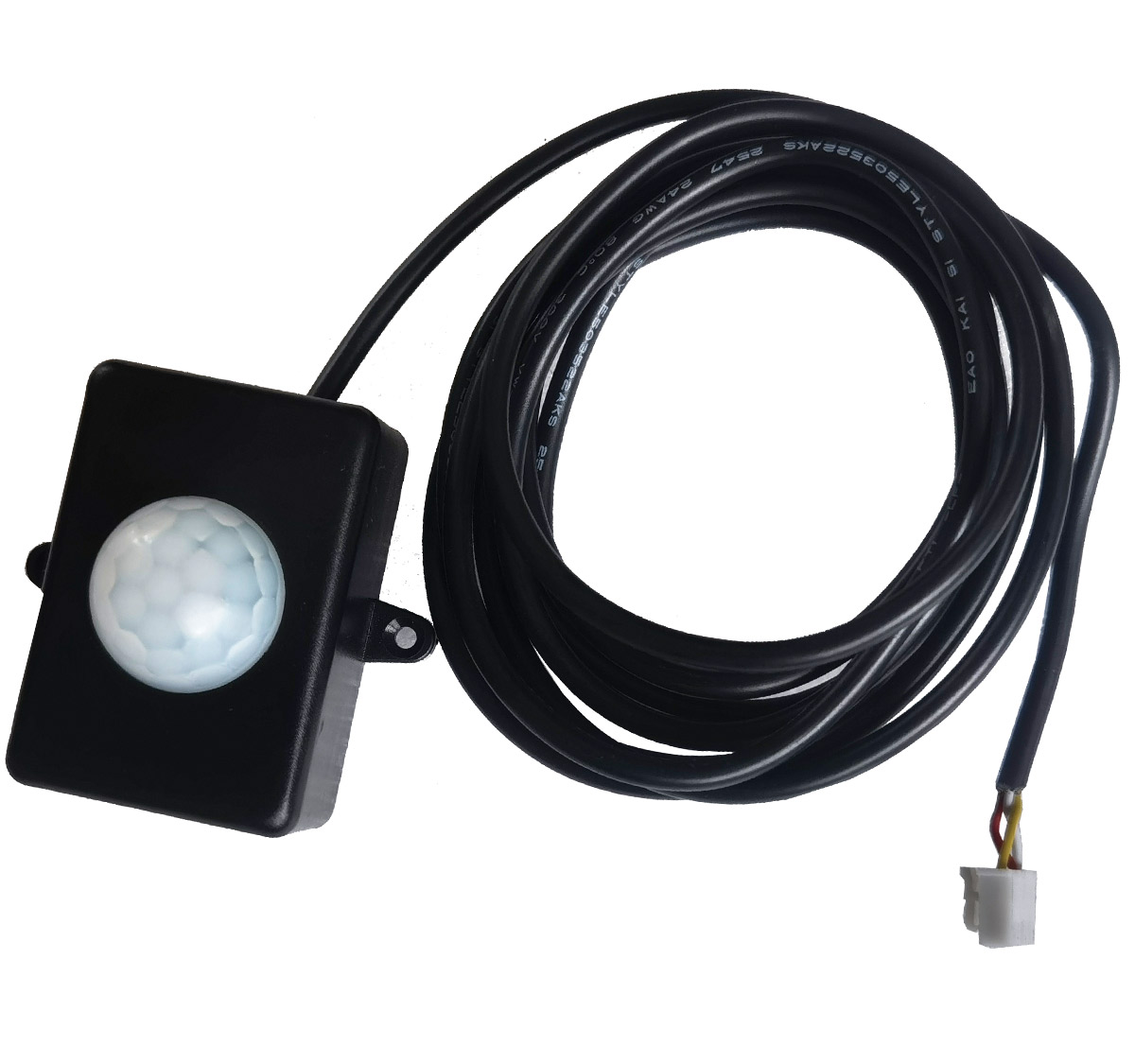

Infrared Security Sensor
Parameters
Mode:S008625
Infrared Security Sensor: Automatic control LED strip
Details
Infrared Security (IS) Sensor, this Sensor main function is automatic control LED on and off.
| Voltage Range: | DC4.5-20V |
| Current: | <200uA |
| Output type: | NPN |
| Delay Time: | Default 5S (5-300S Adjustable) |
| Trigger mode: | L Non-repeatable trigger /H Repeatable trigger ( Default) |
| Blocking time: | 1S |
| Size: | 52L*36W*23H mm, Mounting hole Φ2.5 |
| Sensing angle: | <110 Degree Cone angle |
| Sensing distance: | <5 Meters |
| Temperature range: | -20~85℃ |
| Lens size: | Diameter:23mm |
